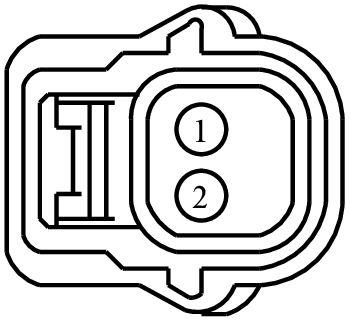

Connector End View (C356) - SEAT POSITION SENSOR, LEFT FRONT

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C356	SEAT POSITION SENSOR, LEFT FRONT	14D231			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	GD901 (BK)	20	GROUND - PASSENGER SEAT # RESTRAINTS CLEAN	NA
2	VR215 (YE-VT)	20	SENSOR - SEAT TRACK POSITION DRIVER	NA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1314

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-AAC

Gauge:

20

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Sensor - Crash (Engine Compartment)
• Sensor - Seat Track Position
• Sensor - Side Impact
• Solenoid - Down Shift
• Solenoid - Torque Control Coupling
• Valve - Heated PCV
• Valve - Heater Core Shut Off
• Valve - Transmission Fluid Warmer
