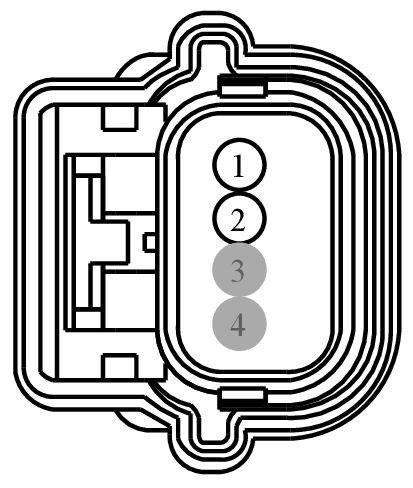

Connector End View (C4817) - KEYLESS ENTRY REAR ANTENNA
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C4817 | KEYLESS ENTRY REAR ANTENNA | 14A005 | #N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| *DU5T-14474-EAA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VPK06 (GY-VT) | 22 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 2 (CENTER) + | *DU5T-14474-EAA | ||||
| 2 | RPK06 (BU-WH) | 22 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 2 (CENTER) - | *DU5T-14474-EAA | ||||
| 3 | * | * | Not Used | N/A | ||||
| 4 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1569
Service Part Number:
CU2Z-14S411-AGB
Gauge:
20
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Antenna - Keyless Entry
- Motor - Active Grill Shutter
- Sensor - Brake Pedal Position
- Sensor - Clutch Master Cylinder
- Sensor - Gear Neutral
Pigtail Kit Part Number WPT-1307
Service Part Number:
CU2Z-14S411-AGA
Gauge:
18
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Antenna - Keyless Entry
- Sensor - Brake Pedal Position
- Sensor - Clutch Master Cylinder
