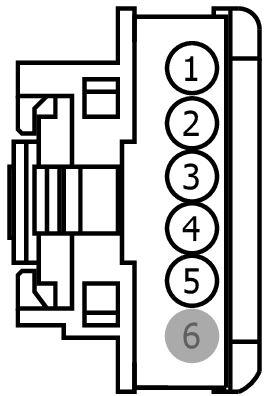

Connector End View (C3818) - LUMBAR MOTOR ASSEMBLY, PASSENGER SEAT

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3818	LUMBAR MOTOR ASSEMBLY, PASSENGER SEAT	14D233			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPS19 (GY-VT)	20	SWITCH - DRIVER LUMBAR SOLENOID (UPPER CELL) DEFLATE	NA
2	CPS18 (BN-GN)	20	SWITCH - DRIVER LUMBAR PUMP	NA
3	GD904 (BK-BU)	20	GROUND - DRIVER SEAT # SEAT SWITCH	NA
4	CPS64 (BN-VT)	20	SWITCH - DRIVER LUMBAR SOLENOID LOWER CELL DEFLATE	NA
5	CPS65 (WH-GN)	20	SWITCH - DRIVER LUMBAR SOLENOID LOWER CELL INFLATE	NA
6	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1471

Courtesy of FORD MOTOR COMPANY

Service Part Number:

GU2Z-14S411-PA

Gauge:

20

Pin material:

Tin

Cavities:

6

Vehicle Uses:

• Sensor - EATC In Car Temperature
• Switch - Seat Lumbar
• Transceiver - Passive Anti-Theft (PATS)
