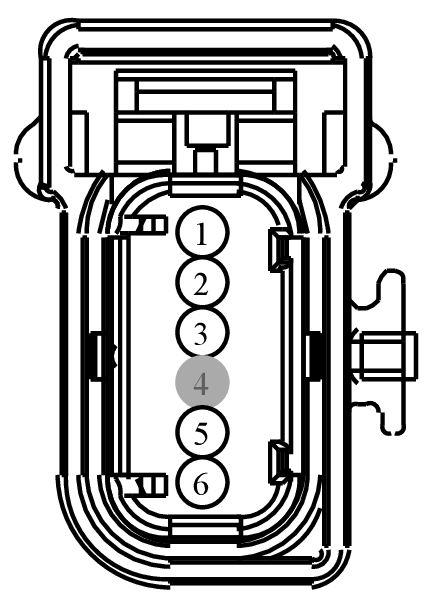

Connector End View (C3738) - SEATBELT BUCKLE, PASSENGER
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C3738 | SEATBELT BUCKLE, PASSENGER | 14D230 | #N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 8U5T-14474-BA | DU2Z-14474-CA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VR210 (BU-BN) | 20 | SENSOR - SEATBELT TENSION FRONT PASSENGER OUTBOARD | 8U5T-14474-BA | ||||
| 2 | LR142 (YE-BU) | 20 | CTRL MOD. - SENSOR SEATBELT TENSION FRONT PASSENGER OUTBOARD + | 8U5T-14474-BA | ||||
| 3 | GD901 (BK) | 20 | GROUND - PASSENGER SEAT # RESTRAINTS CLEAN | 8U5T-14474-BA | ||||
| 4 | * | * | Not Used | N/A | ||||
| 5 | CR201 (GN-BU) | 20 | SENSOR - SEATBELT BUCKLE (SEATBELT REMINDER) FRONT DRIVER SIDE | NA | ||||
| 6 | GD901 (BK) | 20 | GROUND - PASSENGER SEAT # RESTRAINTS CLEAN | NA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1329
Service Part Number:
DU2Z-14S411-EA
Gauge:
20
Pin material:
Tin
Cavities:
6
Vehicle Uses:
- Antenna - Keyless Entry
- Handle - Decklid
- Switch - Keyless Entry
- Switch - Seatbelt
