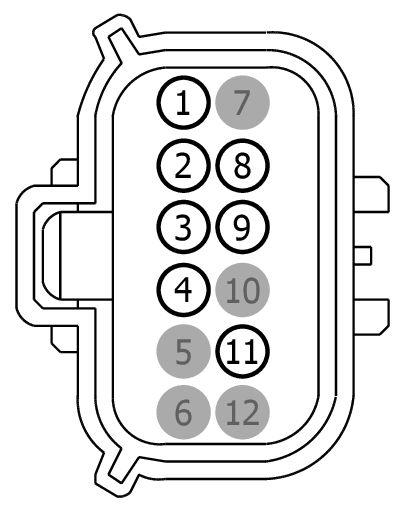

Connector End View (C3733) - BATTERY ENERGY CONTROL MODULE B (BECMB)
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C3733 | BATTERY ENERGY CONTROL MODULE B (BECMB) | BK | 14A005 | part #N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| BU5T-14474-UA | DU2Z-14474-DA | 1.5 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | GD383 (BK-WH) | 22 | GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT | BU5T-14474-UA | ||||
| 2 | VDB05 (WH) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | BU5T-14474-UA | ||||
| 3 | CR194 (VT-WH) | 18 | CTRL MOD. - EXTENDED POWER # RESTRAINTS CONTROL MODULE POWER | 7C3T-14474-DA | ||||
| 4 | CBP35 (YE-GY) | 18 | FUSE - 19 OR CIRCUIT BREAKER | 7C3T-14474-DA | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | * | * | Not Used | N/A | ||||
| 7 | * | * | Not Used | N/A | ||||
| 8 | VDB04 (WH-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | BU5T-14474-UA | ||||
| 9 | CR195 (YE-BU) | 18 | CTRL MOD. - EXTENDED POWER # OCCUPANT CLASSIFICATION SYSTEM MODULE POWER | 7C3T-14474-DA | ||||
| 10 | * | * | Not Used | N/A | ||||
| 11 | SBP14 (BN-RD) | 18 | FUSE - 14 OR CIRCUIT BREAKER | 7C3T-14474-DA | ||||
| 12 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1544
Service Part Number:
AU2Z-14S411-AMB
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
- Lamp - Front Turn
- Lamp - Headlamp - High/Low Beam
- Mirror - Sideview / Heated
- Module - Battery Energy Control
- Module - Extended Power
- Module - Gear Shift
- Module - Glow Plug
- Module - Transmission Ranger Control
- Trailer Tow - Vehicle Side
Pigtail Kit Part Number WPT-1125
Service Part Number:
AU2Z-14S411-AMA
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
- Mirror - Sideview
