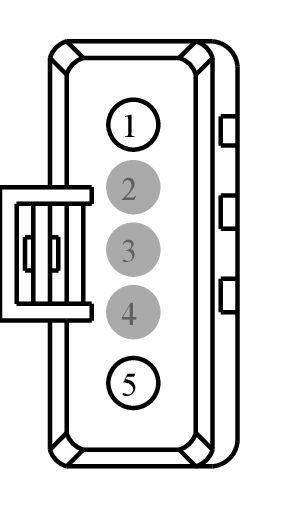

Connector End View (C3689) - PASSENGER SEAT RECLINER MOTOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3689	PASSENGER SEAT RECLINER MOTOR	none	14D233	14489	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPS30 (VT-BN)	14	SWITCH - SEAT ADJUST. DRIVER RECLINE REARWARD	N/A
2	- ()	*	Not Used	N/A
3	- ()	*	Not Used	N/A
4	- ()	*	Not Used	N/A
5	CPS29 (WH-BN)	14	SWITCH - SEAT ADJUST. DRIVER RECLINE FORWARD	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1071

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-PA

Gauge:

14 18

Pin material:

Tin (greased)

Cavities:

5

Vehicle Uses:

• Motor - Seat Height (Rear)
• Motor - Seat Recline

Pigtail Kit Part Number WPT-1450

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-PB

Gauge:

14 20

Pin material:

Tin (greased)

Cavities:

5

Vehicle Uses:

• Clockspring
• Module - Power Steering
• Motor - Seat Height (Front)
• Motor - Seat Height (Rear)
• Motor - Seat Recline
