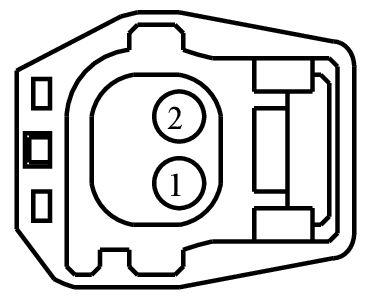

Connector End View (C3656) - REAR SHOCK ABSORBER RH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3656	REAR SHOCK ABSORBER RH	2C054			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CCD06 (VT-GY)	18	CTRL MOD. - CCD # SOLENOID DAMPER REAR RIGHT +	97BG-14474-AEA
2	RCD06 (BU-BN)	18	CTRL MOD. - CCD # SOLENOID DAMPER REAR RIGHT -	97BG-14474-AEA

Available Pigtail Kits

Pigtail Kit Part Number WPT-273

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-GVA

Gauge:

16

Pin material:

Tin

Cavities:

2

Vehicle Uses:

• Sensor - Ambient Temp
• Sensor - Heated Thermostat
