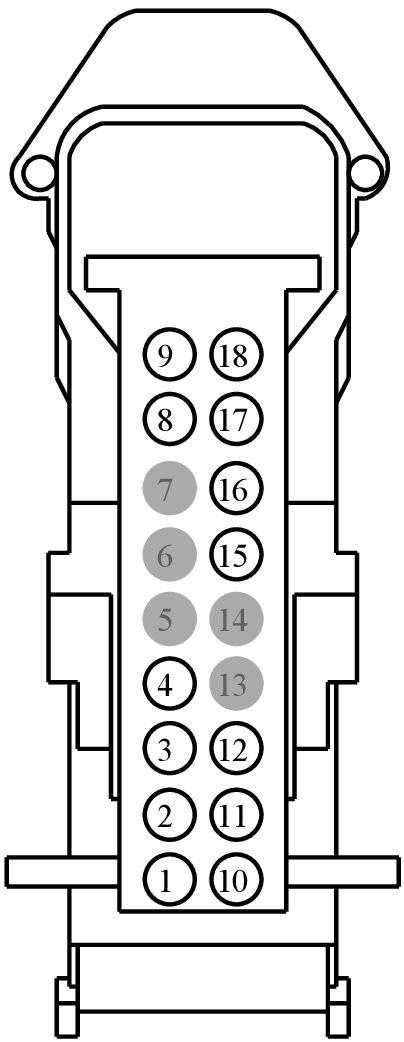

Connector End View (C3590) - GEAR SHIFT MODULE (GSM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3590	GEAR SHIFT MODULE (GSM)	none	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBP12 (GN-RD)	22	FUSE - 12 OR CIRCUIT BREAKER	N/A
2	VDB26 (GY-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	N/A
3	VDB25 (GN-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	N/A
4	CPL30 (BN-BU)	18	SWITCH - LATCH DRIVER OR LEFT FRONT # UNLOCK OR FEEDBACK	N/A
5	- ()	*	Not Used	N/A
6	- ()	*	Not Used	N/A
7	- ()	*	Not Used	N/A
8	CET83 (BU-OG)	20	SWITCH - SHIFT-BY-WIRE OVERRIDE 2 (OVERRIDE_SW_2)	N/A
9	GD214 (BK-BU)	20	GROUND - INSTRUMENT PANEL STRUCTURE	N/A
10	VET77 (GY-YE)	18	ACTUATOR - GEAR SHIFT # PWM OUT 2 (PWM2)	N/A
11	VET76 (GN-OG)	18	CTRL MOD. - GEAR SHIFT # PWM OUT 1 (PWM1)	N/A
12	CET53 (BU-OG)	22	CTRL MOD. - POWERTRAIN # BRAKE SHIFT INTERLOCK	N/A
13	- ()	*	Not Used	N/A
14	*	*	Not Used	N/A
15	CPL26 (GN-VT)	22	SWITCH - LATCH DRIVER OR LEFT FRONT # AJAR	N/A
16	CET82 (GN-VT)	20	SWITCH - SHIFT-BY-WIRE OVERRIDE 1 (OVERRIDE_SW_1)	N/A
17	VET78 (WH-VT)	18	ACTUATOR - GEAR SHIFT # PWM OUT 3 (PWM3)	N/A
18	GD214 (BK-BU)	20	GROUND - INSTRUMENT PANEL STRUCTURE	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1399

Courtesy of FORD MOTOR COMPANY

Service Part Number:

EU2Z-14S411-LA

Gauge:

20

Pin material:

Tin (greased)

Cavities:

18

Vehicle Uses:

• Module - Gear Shift
