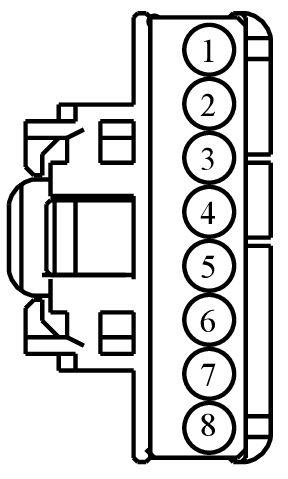

Connector End View (C3523) - HEATED SEAT SWITCH, REAR SEAT

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3523	HEATED SEAT SWITCH, REAR SEAT	14B079			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-LA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VLN04 (BU-WH)	22	CTRL MOD. - IP/SWITCH ILLUMINATION	9U5T-14474-LA
2	CHS31 (YE)	22	SWITCH - SEAT HEATER REAR COMMON OR LEFT	Lincoln	N/A
3	CHS80 (BU-OG)	22	SWITCH - SEAT HEATER REAR RIGHT	Lincoln	N/A
4	CHS53 (WH)	22	CTRL MOD. - HOT/COLD SEAT # REAR RIGHT INDICATOR LOW	Lincoln	N/A
5	CHS52 (BU)	22	CTRL MOD. - HOT/COLD SEAT # REAR RIGHT INDICATOR HIGH	Lincoln	N/A
6	CHS49 (VT)	22	CTRL MOD. - HOT/COLD SEAT # REAR LEFT INDICATOR LOW	Lincoln	N/A
7	CHS48 (YE)	22	CTRL MOD. - HOT/COLD SEAT # REAR LEFT INDICATOR HIGH	Lincoln	N/A
8	GD382 (BK)	22	GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT	Lincoln	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1219

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-DAAC

Gauge:

18

Pin material:

Silver

Cavities:

8

Vehicle Uses:

• Switch - Ambient Lighting Dimmer
• Switch - Door Lock (LH)
• Switch - Message Center
• Switch - Moon Roof/Sun Roof
• Switch - Seat Memory
