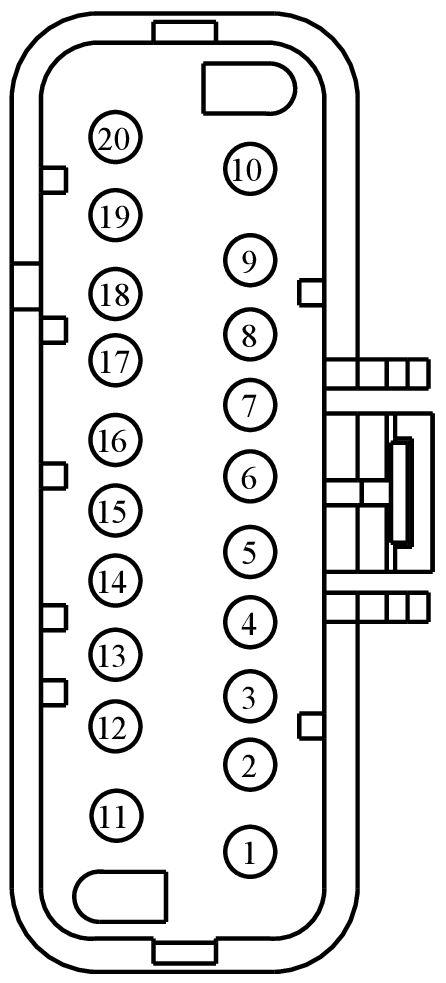

Connector End View (C3388) - SEAT CONTROL SWITCH, PASSENGER SIDE FRONT

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3388	SEAT CONTROL SWITCH, PASSENGER SIDE FRONT	14D230			#N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
7C3T-14474-EA	DU2Z-14474-DA	1.5
3M5T-14474-HBA	DU2Z-14474-EA	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPS30 (VT-BN)	14	SWITCH - SEAT ADJUST. DRIVER RECLINE REARWARD	7C3T-14474-EA
2	CPS19 (GY-VT)	18	SWITCH - DRIVER LUMBAR SOLENOID (UPPER CELL) DEFLATE	7C3T-14474-DA
3	CPS29 (WH-BN)	14	SWITCH - SEAT ADJUST. DRIVER RECLINE FORWARD	7C3T-14474-EA
4	CPS29 (WH-BN)	14	SWITCH - SEAT ADJUST. DRIVER RECLINE FORWARD	N/A
5	CPS65 (WH-GN)	20	SWITCH - DRIVER LUMBAR SOLENOID LOWER CELL INFLATE	N/A
5	CPS30 (VT-BN)	14	SWITCH - SEAT ADJUST. DRIVER RECLINE REARWARD	China	N/A
6	CPS40 (VT-GY)	20	SWITCH - SEAT ADJUST. FRONT PASSENGER RECLINE REARWARD	N/A
7	CPS39 (GY-YE)	20	SWITCH - SEAT ADJUST. FRONT PASSENGER RECLINE FORWARD	N/A
8	CPS95 (GN-VT)	20	SWITCH - SEAT MULTICONTOUR # MORE (LMR)	N/A
9	CPS64 (BN-VT)	20	SWITCH - DRIVER LUMBAR SOLENOID LOWER CELL DEFLATE	N/A
9	CPS96 (WH-OG)	20	SWITCH - SEAT MULTICONTOUR # LESS (LLS)	N/A
10	GD904 (BK-BU)	14	GROUND - DRIVER SEAT # SEAT SWITCH	3M5T-14474-HBA
11	CBX05 (VT-RD)	14	POWER - SEAT # POWER SEAT SWITCH	3M5T-14474-HBA
12	CPS33 (WH)	20	SWITCH - SEAT ADJUST. FRONT PASSENGER FORWARD	N/A
13	CPS38 (GN-BU)	20	SWITCH - SEAT ADJUST. FRONT PASSENGER REARWARD	N/A
14	CPS24 (GY)	14	SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) DOWN	10-way power seat	7C3T-14474-EA
14	CPS27 (BU-BN)	14	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP	4-way power seat	7C3T-14474-EA
14	CPS28 (GN)	14	SWITCH - SEAT ADJUST. DRIVER REARWARD	with APA	N/A
15	CPS23 (GN-VT)	14	SWITCH - SEAT ADJUST. DRIVER FORWARD	with APA	N/A
15	CPS25 (WH-VT)	14	SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) UP	10-way power seat	7C3T-14474-EA
15	CPS26 (YE-BU)	14	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT DOWN	4-way power seat	7C3T-14474-EA
16	CPS23 (GN-VT)	14	SWITCH - SEAT ADJUST. DRIVER FORWARD	7C3T-14474-EA
16	CPS24 (GY)	14	SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) DOWN	China	N/A
17	CPS27 (BU-BN)	14	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP	with APA	N/A
17	CPS28 (GN)	14	SWITCH - SEAT ADJUST. DRIVER REARWARD	7C3T-14474-EA
18	CPS27 (BU-BN)	14	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP	7C3T-14474-EA
18	CPS25 (WH-VT)	14	SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) UP	China	N/A
19	CPS26 (YE-BU)	14	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT DOWN	7C3T-14474-EA
20	CPS18 (BN-GN)	18	SWITCH - DRIVER LUMBAR PUMP	7C3T-14474-DA
