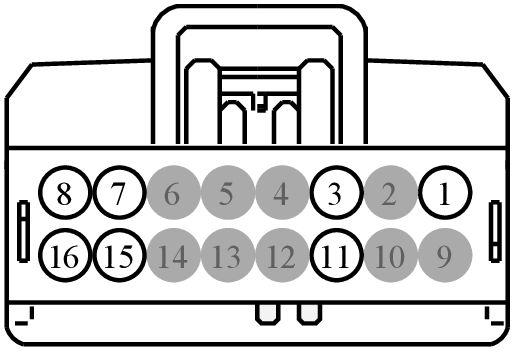

Connector End View (C3386) - PASSENGER MULTI-CONTOUR SEAT MODULE [SCMH]
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C3386 | PASSENGER MULTI-CONTOUR SEAT MODULE [SCMH] | 14D233 | #N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | SBX06 (GY-RD) | 18 | POWER - SEAT # HEATED SEAT MODULE | NA | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | CPT05 (YE) | 20 | #N/A | NA | ||||
| 4 | * | * | Not Used | N/A | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | * | * | Not Used | N/A | ||||
| 7 | VDB07 (VT-OG) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | NA | ||||
| 8 | VDB06 (GY-OG) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | NA | ||||
| 9 | * | * | Not Used | N/A | ||||
| 10 | * | * | Not Used | N/A | ||||
| 11 | CPS95 (GN-VT) | 20 | SWITCH - SEAT MULTICONTOUR # MORE (LMR) | NA | ||||
| 12 | * | * | Not Used | N/A | ||||
| 13 | * | * | Not Used | N/A | ||||
| 14 | * | * | Not Used | N/A | ||||
| 15 | CPS96 (WH-OG) | 20 | SWITCH - SEAT MULTICONTOUR # LESS (LLS) | NA | ||||
| 16 | GD904 (BK-BU) | 18 | GROUND - DRIVER SEAT # SEAT SWITCH | NA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1585
Service Part Number:
KU2Z-14S411-FB
Gauge:
20
Pin material:
Silver
Cavities:
16
Vehicle Uses:
- Module - Audio Control
- Module - Seat Multi Contour
Pigtail Kit Part Number WPT-1579
Service Part Number:
KU2Z-14S411-FA
Gauge:
20
Pin material:
Silver
Cavities:
16
Vehicle Uses:
- Module - Audio Control
- Module - Seat Multi Contour
