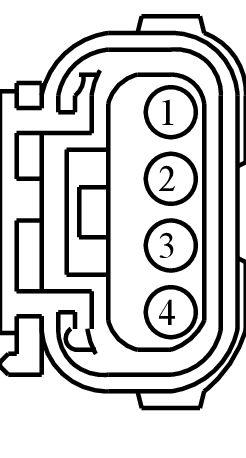

Connector End View (C3128) - FUEL PUMP (FP) ASSEMBLY

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3128	FUEL PUMP (FP) ASSEMBLY	14A069			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
BU5T-14474-BAA	Not Available
F8VB-14474-BA	EU2Z-14474-AA	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VMC11 (YE-VT)	18	SENSOR - FUEL LEVEL (FLI)	LINCOLN 3.0L AWD	BU5T-14474-BAA
2	RMC11 (GN-BU)	18	FUEL SENDER 1 RETURN	LINCOLN 3.0L AWD	BU5T-14474-BAA
3	VMC23 (YE-VT)	20	SENSOR - FUEL LEVEL 2 (FLI)	LINCOLN 3.0L AWD	F8VB-14474-BA
4	RMC33 (BK-GN)	20	CTRL MOD. - SENSOR FUEL LEVEL 2	LINCOLN 3.0L AWD	F8VB-14474-BA

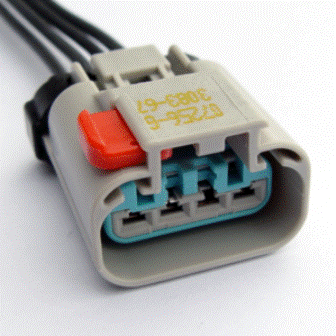

Available Pigtail Kits

Pigtail Kit Part Number WPT-1373

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-DGAB

Gauge:

16

Pin material:

Tin (greased)

Cavities:

4

Vehicle Uses:

• Fuel Pump/Sending Unit
• Module - Fuel Pump Driver
• Sensor - Fuel Level

Pigtail Kit Part Number WPT-709

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-DGAA

Gauge:

14

Pin material:

Tin

Cavities:

4

Vehicle Uses:

• Control - Engine Air Shutoff
• Fuel Pump/Sending Unit
