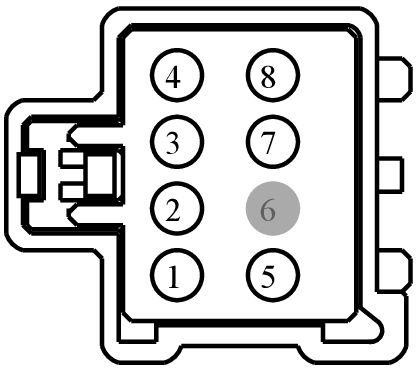

Connector End View (C3040) - SEAT CUSHION THERMO-ELECTRIC DEVICE (TED), PASSENGER SIDE
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C3040 | SEAT CUSHION THERMO-ELECTRIC DEVICE (TED), PASSENGER SIDE | 14D230 | #N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14421-ACB | Not Available | |
| 97BG-14421-ABB | Not Available | |
| 97BG-14421-AAB | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CHS02 (YE-BU) | 14 | CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER + | 97BG-14421-ACB | ||||
| 2 | RHS02 (BU-OG) | 14 | CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER - | 97BG-14421-ACB | ||||
| 3 | CHS03 (GN-BN) | 18 | CTRL MOD. - HOT/COLD SEAT # DRIVER FAN + | 97BG-14421-ABB | ||||
| 4 | RHS03 (GY-OG) | 18 | CTRL MOD. - HOT/COLD SEAT # DRIVER FAN - | 97BG-14421-ABB | ||||
| 5 | VHS26 (VT) | 20 | SENSOR - CUSHION TEMP. DRIVER OR LEFT | 97BG-14421-AAB | ||||
| 6 | * | * | Not Used | N/A | ||||
| 7 | VHS18 (BN-GN) | 20 | CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION BLOWER SPEED CONTROL | 97BG-14421-AAB | ||||
| 8 | RHS05 (YE-VT) | 20 | CTRL MOD. - HOT/COLD SEAT # DRIVER SENSOR CUSHION TEMP. | 97BG-14421-AAB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1034
Service Part Number:
3U2Z-14S411-ZTB
Gauge:
14
Pin material:
Tin
Cavities:
8
Vehicle Uses:
- Lamp - Park/Turn/Stop
- Lamp - Park/Turn/Stop/Reverse - Inline (Male)
