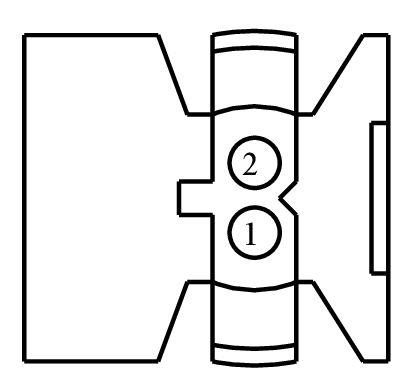

Connector End View (C3014) - DRIVER SEATBELT RETRACTOR PRETENSIONER

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3014	DRIVER SEATBELT RETRACTOR PRETENSIONER	14A005			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CR170 (GN)	20	CTRL MOD. - SEATBELT PRETENSIONER FRONT DRIVER SIDE (#2) +	NA
2	RR170 (BN-BU)	20	CTRL MOD. - SEATBELT PRETENSIONER FRONT DRIVER SIDE (#2) -	NA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1230

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BPA

Gauge:

20

Pin material:

FCI - Airbag

Cavities:

2

Vehicle Uses:

• Airbag - Side Curtain
• Squib - Airbag (Passenger)
