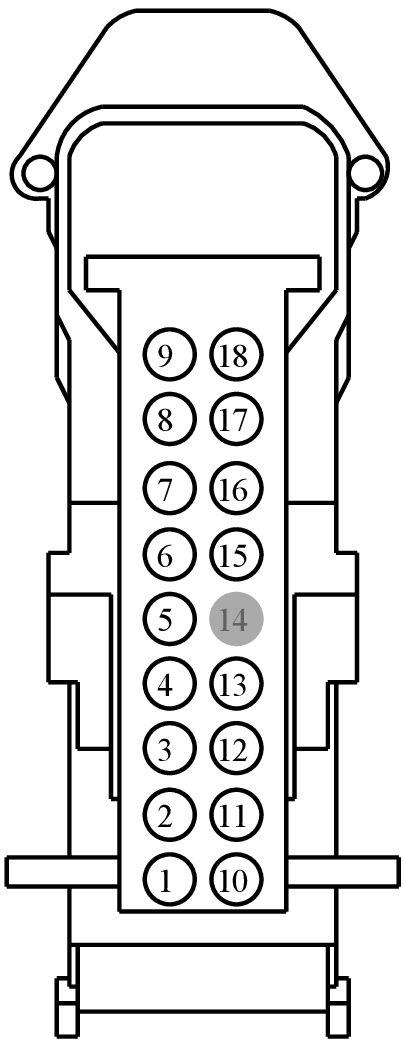

Connector End View (C2600) - ADJUSTABLE STEERING COLUMN MOTOR, TILT

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2600	ADJUSTABLE STEERING COLUMN MOTOR, TILT	14401			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
1C1T-14474-BA	Not Available
6T1T-14474-AA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPP23 (VT-GY)	20	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TILT (RAKE) DOWN	1C1T-14474-BA
2	CPP04 (GY)	20	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TILT (RAKE) UP	1C1T-14474-BA
3	CPP05 (WH-VT)	20	CTRL MOD. - MOTORS ADJUSTABLE STEERING COLUMN COMMON	6T1T-14474-AA
4	VPP08 (WH)	20	SENSOR - ADJUSTABLE STEERING COLUMN TILT (RAKE)	6T1T-14474-AA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1501

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-RB

Gauge:

14

Pin material:

Tin

Cavities:

4

Vehicle Uses:

• Motor - Power Seat Track
• Motor - Seat Height (Front)
• Motor - Seat Height (Rear)
• Motor - Seat Recline
• Motor - Steering Column Adjust

Pigtail Kit Part Number WPT-1072

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-RA

Gauge:

14 18

Pin material:

Tin

Cavities:

4

Vehicle Uses:

• Motor - Power Seat Track
• Motor - Seat Height (Front)
• Motor - Steering Column Adjust
