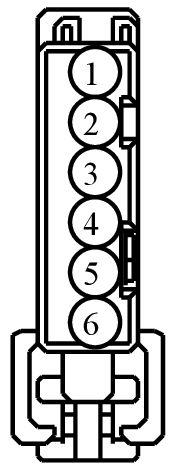

Connector End View (C2490) - STEERING WHEEL SWITCH, LEFT

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2490	STEERING WHEEL SWITCH, LEFT	BK	PIA	9C888	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	RRH02 (*)	*	ILLUMINATION GROUND	N/A
3	LX105 (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 1	N/A
4	LX104 (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 4	N/A
5	RX101 (*)	*	SWITCH - STEERING WHEEL CONTROLS # RETURN LEFT (SW GND LEFT)	N/A
6	LX106 (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 2	N/A
7	LX103 (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 3	N/A
8	VLN04 (*)	*	ILLUMINATION FEED	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1219

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-DAAC

Gauge:

18

Pin material:

Silver

Cavities:

8

Vehicle Uses:

• Switch - Ambient Lighting Dimmer
• Switch - Door Lock (LH)
• Switch - Message Center
• Switch - Moon Roof/Sun Roof
• Switch - Seat Memory
