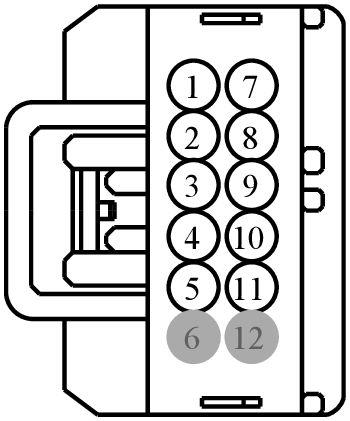

Connector End View (C2414A) - STEERING COLUMN CONTROL MODULE (SCCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2414A	STEERING COLUMN CONTROL MODULE (SCCM)	14401			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-YA	DU2Z-14474-AA	0.64
FU5T-14474-LA	DU2Z-14474-AA	0.64
9U5T-14474-DA	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RRH02 (GN-WH)	22	CTRL MOD. - SWITCH HORN	Ford	9U5T-14474-YA
1	RRH02 (WH)	26	CTRL MOD. - SWITCH HORN	Ford China	9U5T-14474-YA
1	RRH02 (GN-WH)	20	CTRL MOD. - SWITCH HORN	Police	N/A
2	CRW15 (BN-WH)	22	CTRL MOD. - FRONT WIPER HIGH	Ford China	FU5T-14474-LA
2	CRW15 (BN-WH)	20	CTRL MOD. - FRONT WIPER HIGH	9U5T-14474-DA
3	VDB25 (GN)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	9U5T-14474-YA
4	VDB26 (GY)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	9U5T-14474-YA
5	GD214 (BK-BU)	22	GROUND - INSTRUMENT PANEL STRUCTURE	9U5T-14474-DA
6	*	*	Not Used	N/A
7	SBP13 (GY-RD)	22	FUSE - 13 OR CIRCUIT BREAKER	9U5T-14474-DA
7	SBP26 (GY-RD)	22	FUSE - 26 OR CIRCUIT BREAKER	Ford China	FU5T-14474-LA
8	VDN05 (YE)	22	CTRL MOD. - LIN BUS # STEERING WHEEL CONTROL MODULE 1 [OBSOLETE - REPLACED BY VX107]	Ford China	FU5T-14474-LA
8	VDN05 (YE-GY)	22	CTRL MOD. - LIN BUS # STEERING WHEEL CONTROL MODULE 1 [OBSOLETE - REPLACED BY VX107]	9U5T-14474-DA
9	CET42 (GN-VT)	22	SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST)	9U5T-14474-DA
10	CET43 (GY)	22	SWITCH - TRANSMISSION SELECT SHIFT # UP (SST)	9U5T-14474-DA
11	RE407 (YE-VT)	22	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)	9U5T-14474-DA
12	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1401

Courtesy of FORD MOTOR COMPANY

Service Part Number:

EU2Z-14S411-SA

Gauge:

20

Pin material:

Tin

Cavities:

12

Vehicle Uses:

• Module - Climate Control Seat
• Module - Heated Seat (Rear)
• Module - Image Processing
• Module - Media Gateway
• Module - Power Steering
• Monitor - Video/DVD
