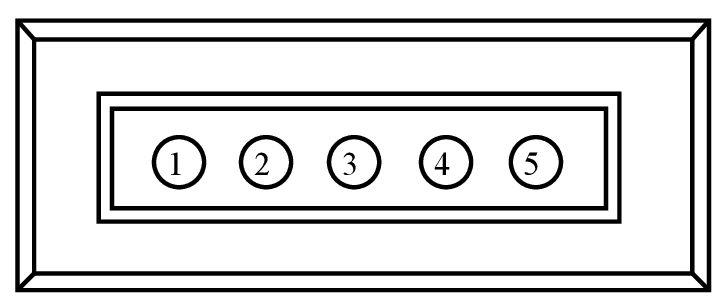

Connector End View (C2391B) - STEERING EFFORT CONTROL MODULE (SECM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2391B	STEERING EFFORT CONTROL MODULE (SECM)	PIA			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	* (*)	*	FUSE - 1	N/A
2	* (*)	*	GUARD TRACK	N/A
3	* (*)	*	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	N/A
4	* (*)	*	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	N/A
5	* (*)	*	GUARD TRACK	N/A
