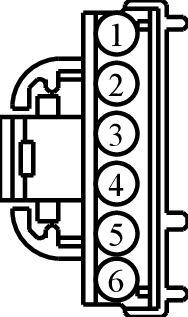

Connector End View (C2366) - STEERING WHEEL SWITCH, LH LOWER

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2366	STEERING WHEEL SWITCH, LH LOWER	14K147			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RRH02 (*)	*	ILLUMINATION GROUND	N/A
2	LX106 (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 2	N/A
3	RX101 (*)	*	SWITCH - STEERING WHEEL CONTROLS # RETURN LEFT (SW GND LEFT)	N/A
4	LX103 (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 3	N/A
5	LX104 (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 4	N/A
6	VLN04 (*)	*	ILLUMINATION FEED	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1006

Courtesy of FORD MOTOR COMPANY

Service Part Number:

7U2Z-14S411-NB

Gauge:

18

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Lamp - Dimmer Switch
• Module - Front Interface
• Switch - Adjustable Pedal
• Switch - Dimmer
• Switch - Dimmer (Instrument Panel)
• Switch - Message Center
• Switch - Power Window - Passenger (Front)
