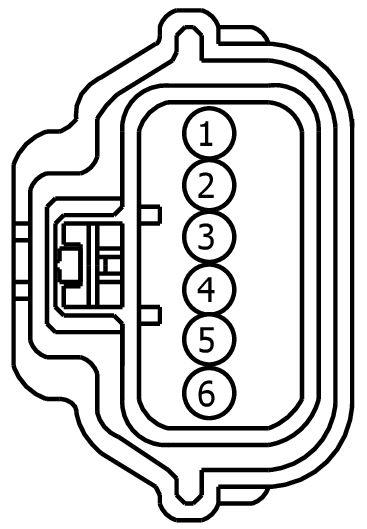

Connector End View (C2040) - ACCELERATOR PEDAL POSITION (APP) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2040	ACCELERATOR PEDAL POSITION (APP) SENSOR	12A581			#N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
3F2T-14474-RA	DU2Z-14474-BA	0.64
1L2T-14474-CA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	LE136 (GN-OG)	18	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1VREF)	2.7L/3.0L	1L2T-14474-CA
1	LE136 (GN-OG)	20	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1VREF)	3F2T-14474-RA
2	VE701 (YE-OG)	18	SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1)	2.7L/3.0L	1L2T-14474-CA
2	VE701 (YE-OG)	20	SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1)	3F2T-14474-RA
3	RE136 (VT-GN)	18	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1RTN)	2.7L/3.0L	1L2T-14474-CA
3	RE136 (VT-GN)	20	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1RTN)	3F2T-14474-RA
4	RE137 (YE-GN)	18	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2RTN)	2.7L/3.0L	1L2T-14474-CA
4	RE137 (YE-GN)	20	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2RTN)	3F2T-14474-RA
5	VE702 (BU-WH)	18	SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2)	2.7L/3.0L	1L2T-14474-CA
5	VE702 (BU-WH)	20	SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2)	3F2T-14474-RA
6	LE137 (BU-GY)	18	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2VREF)	2.7L/3.0L	1L2T-14474-CA
6	LE137 (BU-GY)	20	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2VREF)	3F2T-14474-RA
