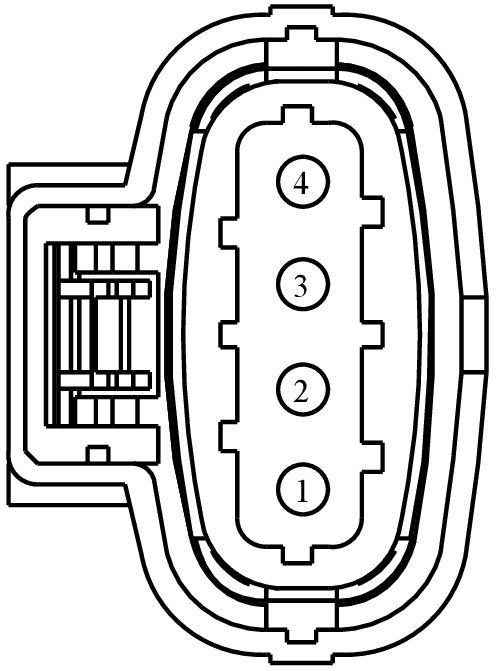

Connector End View (C1911) - MANIFOLD ABSOLUTE PRESSURE/INTAKE AIR TEMPERATURE 2 (MAP/IAT2) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1911	MANIFOLD ABSOLUTE PRESSURE/INTAKE AIR TEMPERATURE 2 (MAP/IAT2) SENSOR	12C508			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
DU5T-14474-GBA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RE454 (YE-GN)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2	1.5L/2.0L	DU5T-14474-GBA
2	RE804 (GY-BU)	18	SENSOR - MANIFOLD ABSOLUTE PRESSURE THERMISTOR (TMAP) -	NA
3	LE458 (BU-WH)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF2)	2.0L	DU5T-14474-GBA
3	LE459 (GY)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 3 (VREF3)	1.5L	DU5T-14474-GBA
4	VE804 (GN-BN)	18	SENSOR - MANIFOLD ABSOLUTE PRESSURE THERMISTOR (TMAP) +	DU5T-14474-GBA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1232

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-ATA

Gauge:

14

Pin material:

Tin (greased)

Cavities:

4

Vehicle Uses:

• Sensor - Manifold Pressure/Intake Temperature
