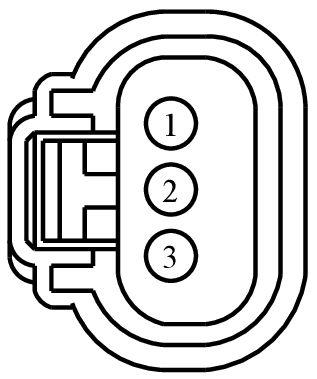

Connector End View (C1909B) - 6F35 TRANSMISSION

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1909B	6F35 TRANSMISSION	12C508			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RET24 (BN-BU)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND)	97BG-14474-ADA
2	VET33 (WH-OG)	20	SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) +	97BG-14474-ADA
3	LE111 (VT-GN)	20	CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR)	97BG-14474-ADA

Available Pigtail Kits

Pigtail Kit Part Number WPT-990

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-ZB

Gauge:

14

Pin material:

Tin (greased)

Cavities:

3

Vehicle Uses:

• Sensor - Cam Shaft Position
• Sensor - Crank Shaft Position
• Sensor - Fuel Tank Pressure Transducer
• Sensor - Turbine Shaft Speed
• Switch - Fuel Delivery Pressure
