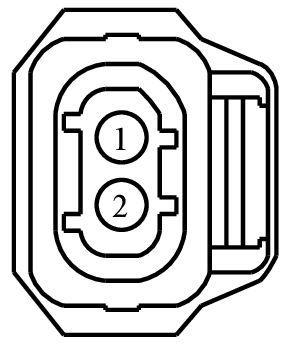

Connector End View (C1903) - FUEL INJECTOR HEATER 3

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1903	FUEL INJECTOR HEATER 3	14B485			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CE245 (VT-WH)	12	CTRL MOD. - GLOW PLUG 3 OR ELECTRONIC COLD START	N/A
2	GD124 (BK-GN)	12	GROUND - ENGINE BLOCK RIGHT	N/A

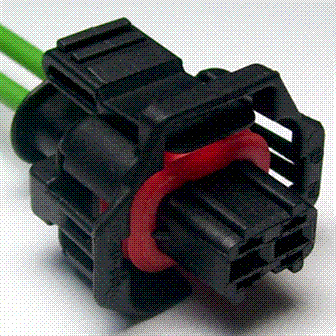

Available Pigtail Kits

Pigtail Kit Part Number WPT-1302

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ARA

Gauge:

16

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Fuel Injector
• Pump - Fuel Injection
• Solenoid - Fuel Volume Regulator Control
