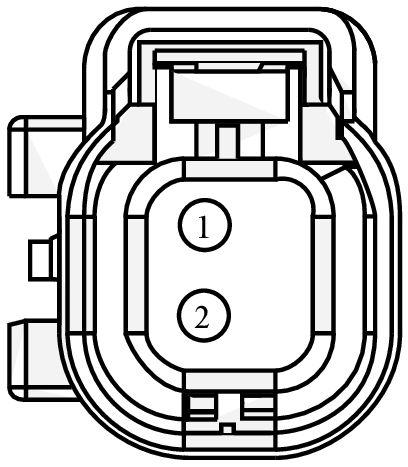

Connector End View (C1745) - CYLINDER HEAD TEMPERATURE 2 (CHT2) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1745	CYLINDER HEAD TEMPERATURE 2 (CHT2) SENSOR	12C508			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE712 (BU-GY)	20	SENSOR - CYLINDER HEAD TEMPERATURE (CHT)	7U5T-14474-VA
2	RE454 (YE-GN)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2	2.0L	7U5T-14474-VA
2	RE454 (YE-GN)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2	2.7L	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-984

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BXAB

Gauge:

16

Pin material:

Silver

Cavities:

2
