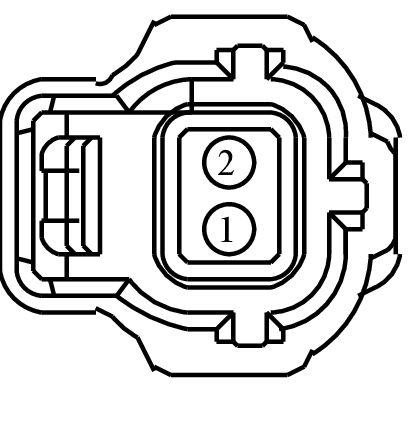

Connector End View (C1743) - CHARGE AIR COOLER COOLANT TEMPERATURE (CACCT) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1743	CHARGE AIR COOLER COOLANT TEMPERATURE (CACCT) SENSOR	8C290			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
96AG-14474-AA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE716 (YE)	20	SENSOR - CHARGE AIR COOLER COOLANT TEMPERATURE (CACCT)	96AG-14474-AA
2	RE407 (YE-VT)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)	96AG-14474-AA

Available Pigtail Kits

Pigtail Kit Part Number WPT-989

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-HYB

Gauge:

14

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• Sensor - Coolant Temperature
• Sensor - Cylinder Head Temperature
• Sensor - Transmission Oil Temperature
