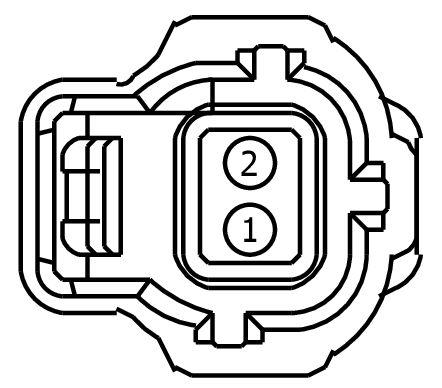

Connector End View (C1741) - INTAKE AIR TEMPERATURE 2 (IAT2) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1741	INTAKE AIR TEMPERATURE 2 (IAT2) SENSOR	12C508			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
96AG-14474-AA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE751 (BN-VT)	20	SENSOR - INTAKE AIR TEMPERATURE 2ND (IAT2)	96AG-14474-AA
2	RE405 (GN-WH)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A)	96AG-14474-AA

Available Pigtail Kits

Pigtail Kit Part Number WPT-322

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-JZA

Gauge:

14

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• Resistor - Daytime Running Lamp (DRL)
• Sensor - Air Charge Temperature
• Sensor - Brake Pressure
• Solenoid - Canister Vent
• Switch - Brake Pressure
