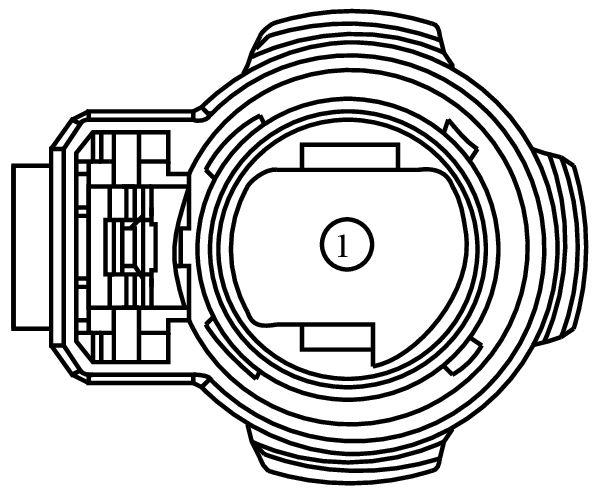

Connector End View (C1715B) - STARTER MOTOR

Connector: Description Color Harness Base Part # Service Pigtail
C1715B STARTER MOTOR 14A280 #N/A Not Available
GFDWR88980Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CDC25 (BN-GN) 12 RELAY - STARTER NA
