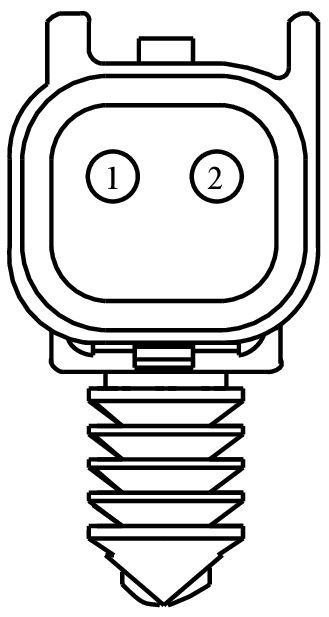

Connector End View (C1713) - EXHAUST GAS TEMPERATURE (EGT) SENSOR 1

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1713	EXHAUST GAS TEMPERATURE (EGT) SENSOR 1	none	14A280	14A624	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE722 (BN)	20	SENSOR - EXHAUST GAS TEMPERATURE 1 (EGT1) (PRE CAT)	N/A
2	RE722 (BU-OG)	20	SENSOR - EXHAUST GAS TEMPERATURE 1 (EGT1) (PRE CAT)-	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1186

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-AKA

Gauge:

16

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• Speaker - Tweeter - LH - Front
• Speaker - Tweeter - LH - Rear
• Speaker - Tweeter - RH - Front
• Speaker - Tweeter - RH - Rear
• Switch - Seatbelt
