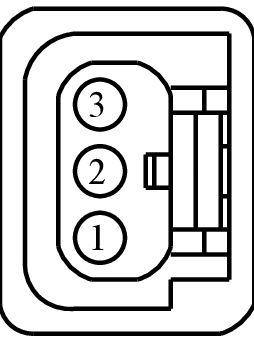

Connector End View (C1699) - CAMSHAFT POSITION BANK 1 SENSOR 2 (CMP12)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1699	CAMSHAFT POSITION BANK 1 SENSOR 2 (CMP12)	12C508			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	LE458 (BU-WH)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF2)	97BG-14474-AHA
2	RE405 (GN-WH)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A)	97BG-14474-AHA
3	VE707 (GN-VT)	20	SENSOR - CAMSHAFT POSITION BANK 2 IN+EX / IN (CMP2) [CID-H] (CID2) +	97BG-14474-AHA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1205

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-KMB

Gauge:

16

Pin material:

Tin (greased)

Cavities:

3

Vehicle Uses:

• Sensor - Cam Shaft Position
• Sensor - Delta Pressure Feedback EGR
• Sensor - Fuel Tank Pressure Transducer
