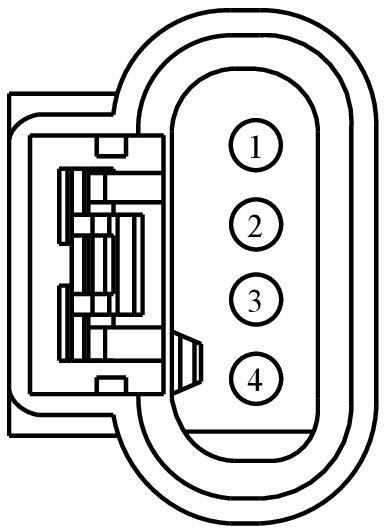

Connector End View (C1694) - TURBOCHARGER BOOST PRESSURE (TCBP) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1694	TURBOCHARGER BOOST PRESSURE (TCBP) SENSOR	8C290			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
AU5T-14474-MA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE803 (GY-OG)	18	SENSOR - MANIFOLD ABSOLUTE PRESSURE (MAP) +	AU5T-14474-MA
2	LE424 (GN-VT)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-VREF)	AU5T-14474-MA
3	VE751 (YE-GN)	18	SENSOR - INTAKE AIR TEMPERATURE 2ND (IAT2)	AU5T-14474-MA
4	LE424 (YE)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-VREF)	AU5T-14474-MA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1309

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AYA

Gauge:

18

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Motor - Active Grill Shutter
