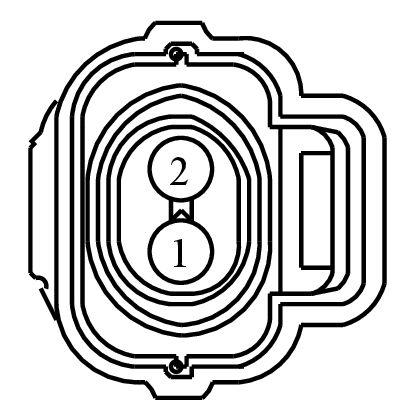

Connector End View (C1671) - VARIABLE CAMSHAFT TIMING 12 (VCT12) SOLENOID

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1671	VARIABLE CAMSHAFT TIMING 12 (VCT12) SOLENOID	12C508			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBK02 (GN)	20	FUSE - 2 OR CIRCUIT BREAKER (VPWR)	N/A
2	CE422 (WH-OG)	20	CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING 11 (VCT11)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1269

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-SA

Gauge:

14

Pin material:

Tin

Cavities:

2

Vehicle Uses:

• Solenoid - Engine Variable Timing
