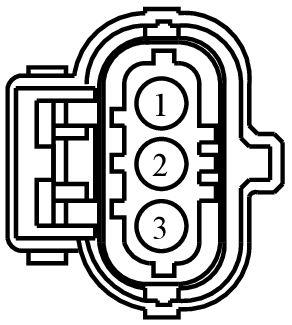

Connector End View (C1657) - ENGINE OIL PRESSURE (EOP) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1657	ENGINE OIL PRESSURE (EOP) SENSOR	12C508			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-KA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CMC14 (BN-YE)	18	SENSOR - LOW LEVEL ENGINE OIL	9U5T-14474-KA
2	RE454 (YE-GN)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2	9U5T-14474-KA
3	LE458 (BU-WH)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF2)	9U5T-14474-KA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1066

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-GA

Gauge:

14

Pin material:

Tin (greased)

Cavities:

3

Vehicle Uses:

• Sensor - Fuel Rail Pressure
