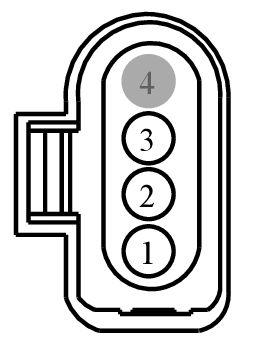

Connector End View (C1656) - WINDSHIELD WIPER MOTOR, RIGHT FRONT

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1656	WINDSHIELD WIPER MOTOR, RIGHT FRONT	12A581			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
BU5T-14474-DAA	Not Available
BU5T-14474-CAA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CRW25 (BU-GY)	14	RELAY - FRONT WIPER PARK	BU5T-14474-DAA
2	GD123 (BK-GY)	14	GROUND - FENDER FRONT RIGHT	BU5T-14474-DAA
3	VRW28 (WH-OG)	20	MOTOR - FRONT WIPER MASTER # MOTOR FRONT WIPER SLAVE	BU5T-14474-CAA
3	VRW28 (WH-OG)	14	MOTOR - FRONT WIPER MASTER # MOTOR FRONT WIPER SLAVE	Lincoln China	BU5T-14474-CAA
4	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1135

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-JA

Gauge:

14

Pin material:

Tin (greased)

Cavities:

4

Vehicle Uses:

• Motor - Windshield Wiper
