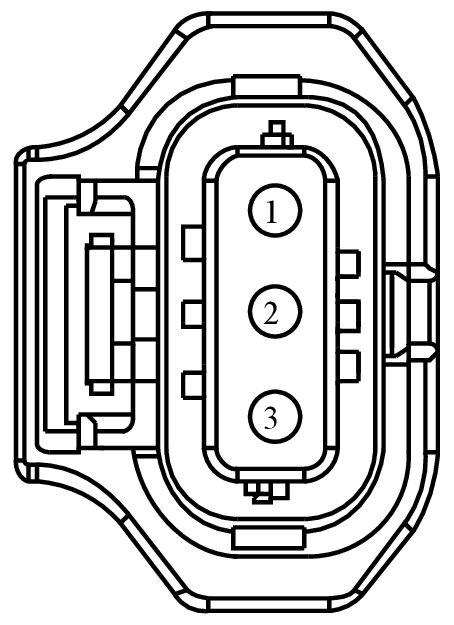

Connector End View (C1642) - ENGINE OIL PRESSURE (EOP) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1642	ENGINE OIL PRESSURE (EOP) SENSOR	12C508			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
EU5T-14474-SB	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CMC14 (BN-YE)	18	SENSOR - LOW LEVEL ENGINE OIL	EU5T-14474-SB
2	RE454 (YE-GN)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2	EU5T-14474-SB
3	LE459 (GY)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 3 (VREF3)	EU5T-14474-SB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1531

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-XA

Gauge:

14

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Sensor - Oil Pressure
