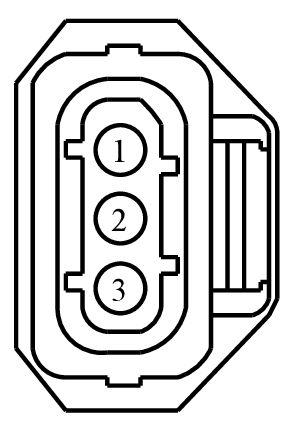

Connector End View (C1625) - CAMSHAFT POSITION BANK 1 SENSOR 1 (CMP11)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1625	CAMSHAFT POSITION BANK 1 SENSOR 1 (CMP11)	12C508			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RE429 (GY-OG)	20	CTRL MOD. - POWERTRAIN # VARIABLE RELUCTANCE SENSOR (VRSRTN) (CAMSHAFT POSITION)	NA
2	VE706 (BN-BU)	20	SENSOR - CAMSHAFT POSITION BANK 1 IN+EX / IN (CMP1) [CID-H] (CID1) +	NA
3	LE458 (BU-WH)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF2)	NA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1099

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-BBA

Gauge:

14

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Fuel Injector
• Pump - Fuel Injection
• Sensor - Manifold Absolute Pressure (MAP)
• Solenoid - Fuel Volume Regulator Control
