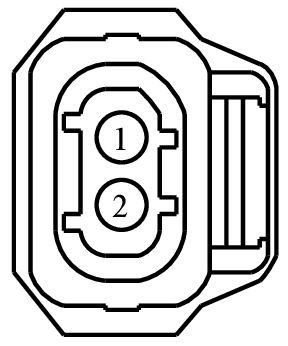

Connector End View (C1589) - FUEL INJECTION PUMP

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1589	FUEL INJECTION PUMP	12C508			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9G9N-14474-BA	Not Available
9G9N-14474-AA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RE226 (GN-VT)	14	CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) -	2.0L	9G9N-14474-BA
1	RE226 (GN-VT)	16	CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) -	9G9N-14474-AA
2	CE226 (YE-VT)	14	CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) +	2.0L	9G9N-14474-BA
2	CE226 (YE-VT)	16	CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) +	NA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1302

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ARA

Gauge:

16

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Fuel Injector
• Pump - Fuel Injection
• Solenoid - Fuel Volume Regulator Control
