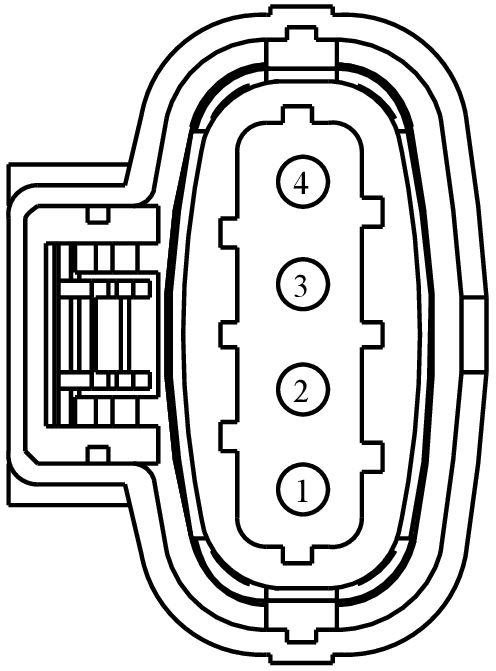

Connector End View (C1588) - TURBOCHARGER BOOST PRESSURE/CHARGE AIR COOLER TEMPERATURE (TCBP/CACT) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1588	TURBOCHARGER BOOST PRESSURE/CHARGE AIR COOLER TEMPERATURE (TCBP/CACT) SENSOR	8C290			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
DU5T-14474-GBA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RE407 (YE-BU)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)	DU5T-14474-GBA
2	LE424 (YE-GN)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-VREF)	DU5T-14474-GBA
3	LE423 (GN)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1)	DU5T-14474-GBA
4	VE805 (GY-OG)	18	SENSOR - MANIFOLD TEMPERATURE +	DU5T-14474-GBA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1232

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-ATA

Gauge:

14

Pin material:

Tin (greased)

Cavities:

4

Vehicle Uses:

• Sensor - Manifold Pressure/Intake Temperature
