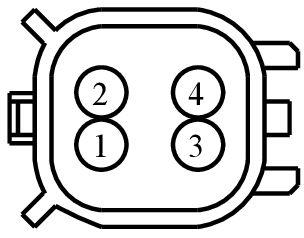

Connector End View (C1579) - FRONT FOG LAMP RH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1579	FRONT FOG LAMP RH	none	15K867	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CAP23 (BN)	16	POLICE - FLASHER REAR POWER	N/A
2	CAP28 (GN-VT)	20	POLICE - LAMP STROBE PATTERN FRONT	N/A
3	CAP26 (BU-GN)	20	POLICE - LAMP STROBE SYNC FRONT	N/A
4	GD120 (BK-GY)	18	GROUND - FENDER FRONT LEFT	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1615

Service Part Number:

GU2Z-14S411-AB

Gauge:

16

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Sensor - Catalyst Monitor
• Sensor - O2 (HEGO/ EGO)

Pigtail Kit Part Number WPT-1453

Courtesy of FORD MOTOR COMPANY

Service Part Number:

GU2Z-14S411-AA

Gauge:

16

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Sensor - Catalyst Monitor
• Sensor - O2 (HEGO/ EGO)
