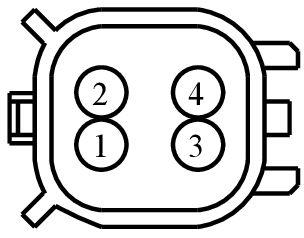

Connector End View (C1569) - HEATED OXYGEN SENSOR (HO2S) #22
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1569 | HEATED OXYGEN SENSOR (HO2S) #22 | 12C508 | #N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 2L1T-14421-CA | EU2Z-14421-CA | 1.5 |
| 7U5T-14421-BA | EU2Z-14421-CA | 1.5 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBK02 (GN) | 18 | FUSE - 2 OR CIRCUIT BREAKER (VPWR 2) | 2L1T-14421-CA | ||||
| 2 | CE234 (BU-WH) | 18 | CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 2ND (HTR22) | 2L1T-14421-CA | ||||
| 3 | RE407 (YE-VT) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C) | 7U5T-14421-BA | ||||
| 4 | VE733 (WH) | 18 | SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22) | 7U5T-14421-BA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1615
Service Part Number:
GU2Z-14S411-AB
Gauge:
16
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Sensor - Catalyst Monitor
- Sensor - O2 (HEGO/ EGO)
Pigtail Kit Part Number WPT-1453
Service Part Number:
GU2Z-14S411-AA
Gauge:
16
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Sensor - Catalyst Monitor
- Sensor - O2 (HEGO/ EGO)
