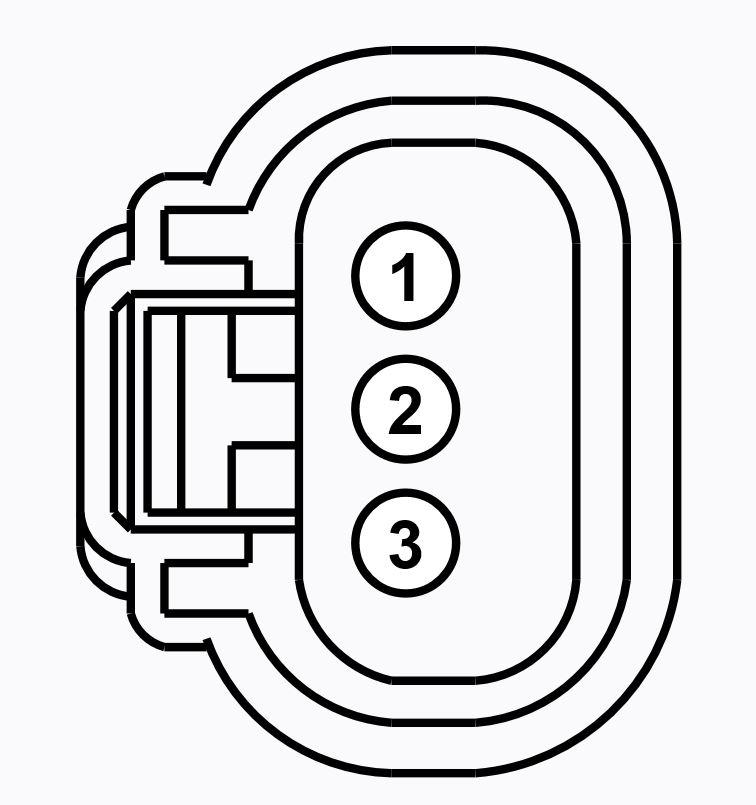

Connector End View (C1520B) - 6F35 TRANSMISSION

Connector	Description	Color	Harness	Base Part#	Service Pigtail
	C1520B	6F35 TRANSMISSION	12C508	#N/A	See Below

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RET24 (BN-BU)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND)
2	VET33 (WH-OG)	20	SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) +
3	LE111 (VT-GN)	20	CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR)

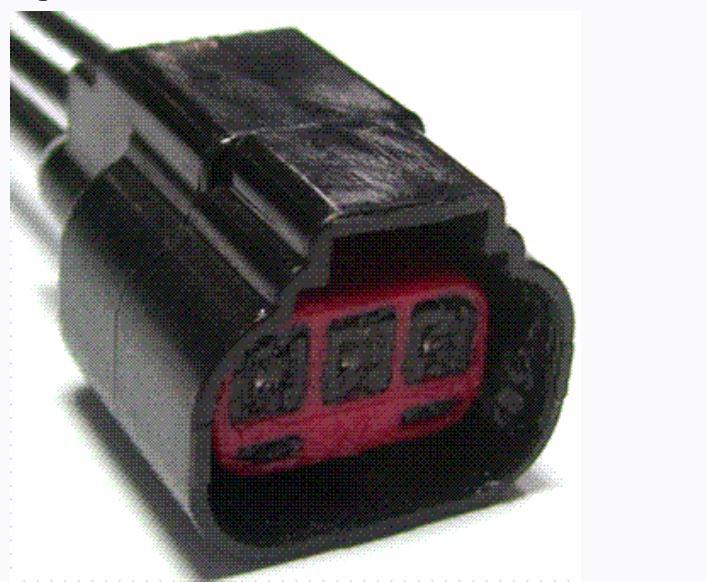

Available Pigtail Kits

Pigtail Kit Part Number WPT-990

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-ZB

Gauge:

14

Pin material:

Tin (greased)

Cavities:

3

Vehicle Uses:

• Sensor - Cam Shaft Position
• Sensor - Crank Shaft Position
• Sensor - Fuel Tank Pressure Transducer
• Sensor - Turbine Shaft Speed
• Switch - Fuel Delivery Pressure
