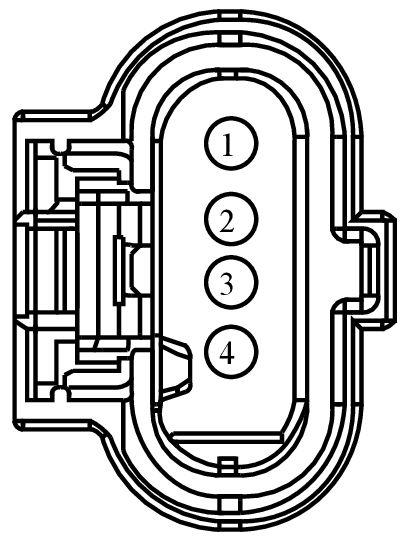

Connector End View (C1454) - MANIFOLD ABSOLUTE PRESSURE/INTAKE AIR TEMPERATURE 2 (MAP/IAT2) SENSOR
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1454 | MANIFOLD ABSOLUTE PRESSURE/INTAKE AIR TEMPERATURE 2 (MAP/IAT2) SENSOR | 12C508 | #N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VE740 (VT-GY) | 18 | SENSOR - INTAKE AIR TEMPERATURE (IAT) | EU5T-14474-GAB | ||||
| 2 | LE423 (GN-VT) | 18 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1) | EU5T-14474-GAB | ||||
| 3 | VE804 (GN-BN) | 18 | SENSOR - MANIFOLD ABSOLUTE PRESSURE THERMISTOR (TMAP) + | EU5T-14474-GAB | ||||
| 4 | RE454 (YE-GN) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2 | EU5T-14474-GAB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1537
Service Part Number:
JU2Z-14S411-ACA
Gauge:
18
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Module - Differential Oil Temperature
- Module - Particulate Matter Bank Sensor
- Module - Reductant Quality
- Noise Generator
- Sensor - Fuel Rail Pressure and Temperature
- Sensor - Manifold Pressure/Intake Temperature
- Sensor - Turbo Intake Pressure/Temperature
- Valve - Active Exhaust Solenoid
