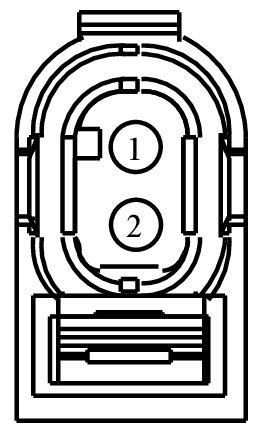

Connector End View (C1417) - FUEL INJECTOR 2

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1417	FUEL INJECTOR 2	9F666			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CE206 (GY-YE)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) +	N/A
2	RE206 (BU-OG)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) -	N/A

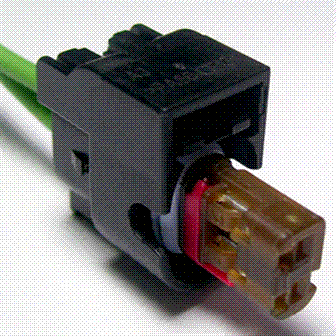

Available Pigtail Kits

Pigtail Kit Part Number WPT-1371

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-ANA

Gauge:

18

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Fuel Injector
