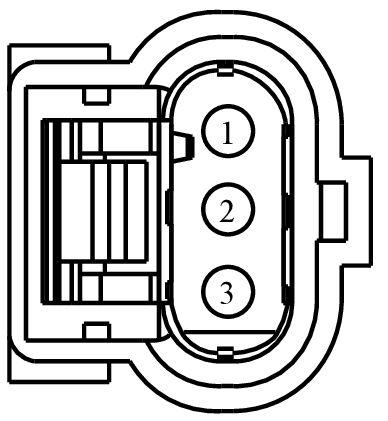

Connector End View (C1339) - CRANKSHAFT POSITION (CKP) SENSOR
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1339 | CRANKSHAFT POSITION (CKP) SENSOR | 12C508 | #N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| AU5T-14474-TA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | LE423 (GN-VT) | 20 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1) | AU5T-14474-TA | ||||
| 2 | VE711 (YE-VT) | 20 | SENSOR - CRANKSHAFT POSITION (CKPP) + | AU5T-14474-TA | ||||
| 3 | RE405 (GN-WH) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A) | AU5T-14474-TA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1530
Service Part Number:
BU2Z-14S411-ARB
Gauge:
18
Pin material:
Silver
Cavities:
3
Vehicle Uses:
- Coil - Ignition
- Lamp - Front Turn
- Lamp - Park/Turn
- Module - Handsfree Liftgate Entry
- Monitor - Crankcase Ventilation
- Motor - Intercooler Pump
- Pump - Auxiliary Heater
- Pump - Coolant Module
- Pump - Transfer Case Coolant
- Sensor - Cam Shaft Position
- Sensor - Crank Shaft Position
- Sensor - Crankcase Pressure
- Sensor - Fuel Low Pressure
- Sensor - Particulate Delta Pressure
- Sensor - Particulate Filter Delta Pressure
- Solenoid - Wastegate Vacuum
- Switch - Deck Lid / Hatch Release
Pigtail Kit Part Number WPT-1202
Service Part Number:
BU2Z-14S411-ARA
Gauge:
18
Pin material:
Silver
Cavities:
3
Vehicle Uses:
- Actuator - Turbocharger Waste Gate
- Coil - Ignition
- Sensor - Cam Shaft Position
- Sensor - Crank Shaft Position
