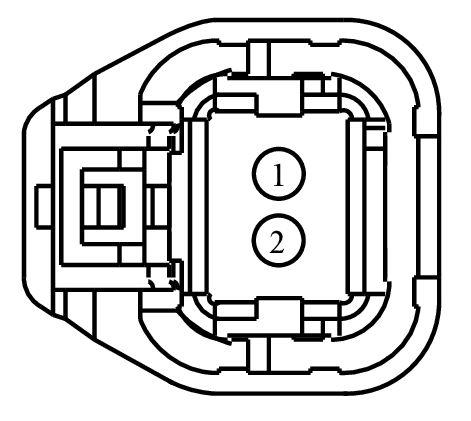

Connector End View (C1246) - TURBOCHARGER WASTEGATE REGULATING VALVE SOLENOID (TCWRVS)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1246	TURBOCHARGER WASTEGATE REGULATING VALVE SOLENOID (TCWRVS)	12C508			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
DU5T-14474-PAA	Not Available
6M5T-14474-ABA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBK03 (GY)	20	FUSE - 3 OR CIRCUIT BREAKER (VPWR 3)	1.5L	DU5T-14474-PAA
1	CBK03 (GY)	18	FUSE - 3 OR CIRCUIT BREAKER (VPWR 3)	2.0L	6M5T-14474-ABA
2	CE460 (VT-WH)	18	CTRL MOD. - POWERTRAIN # WASTEGATE SOLENOID (WGT_CV) +	2.0L	6M5T-14474-ABA
2	VE850 (WH-VT)	20	SENSOR - WASTE GATE CONTROL PRESSURE (WGCP)	1.5L	DU5T-14474-PAA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1370

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-ALA

Gauge:

18

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• Actuator - Turbocharger Waste Gate
