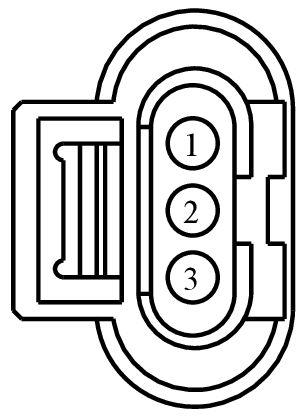

Connector End View (C1217) - CHARGE AIR COOLER (CAC) PUMP
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1217 | CHARGE AIR COOLER (CAC) PUMP | 12C508 | #N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 6W8T-14474-GA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | GD108 (BK-VT) | 16 | GROUND - CHASSIS / BATTERY | NA | ||||
| 2 | CBK03 (GY) | 20 | FUSE - 3 OR CIRCUIT BREAKER (VPWR 3) | 6W8T-14474-GA | ||||
| 3 | CE258 (YE-GN) | 20 | CTRL MOD. - POWERTRAIN # FUEL COOLANT PUMP RELAY | NA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1301
Service Part Number:
CU2Z-14S411-ANA
Gauge:
18
Pin material:
Silver
Cavities:
3
Vehicle Uses:
- Sensor - Front Park Aid (FPA)
