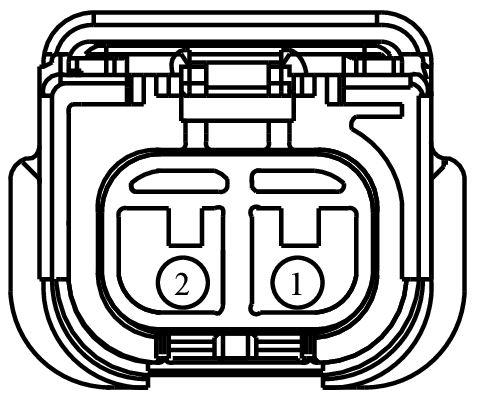

Connector End View (C1195) - EVAPORATIVE EMISSION (EVAP) PURGE VALVE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1195	EVAPORATIVE EMISSION (EVAP) PURGE VALVE	12C508			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CE113 (WH-BN)	18	CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (CANP)	2.7L/3.0L	97BG-14474-AEA
2	CBK02 (GN)	18	FUSE - 2 OR CIRCUIT BREAKER (VPWR 2)	2.7L/3.0L	97BG-14474-AEA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1133

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-FA

Gauge:

16

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Coil - Ignition
