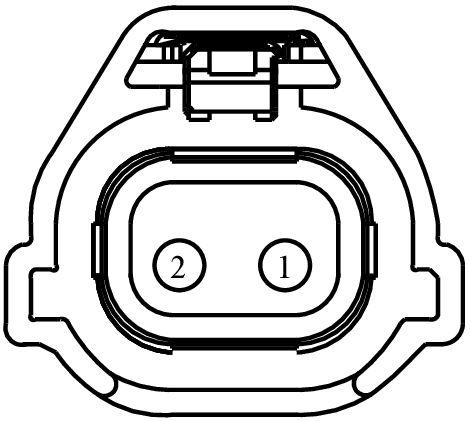

Connector End View (C1145) - FUEL INJECTOR 5

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1145	FUEL INJECTOR 5	GY	14B485	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
XR8T-14474-CA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CE209 (BN)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 5 (INJ) +	XR8T-14474-CA
2	RE209 (WH-GN)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 5 (INJ) -	XR8T-14474-CA

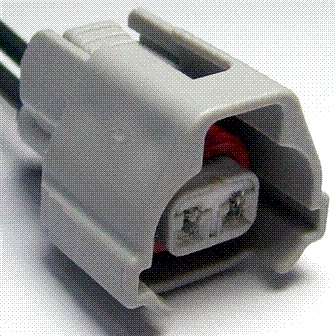

Available Pigtail Kits

Pigtail Kit Part Number WPT-1282

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-XA

Gauge:

16

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• Fuel Injector
