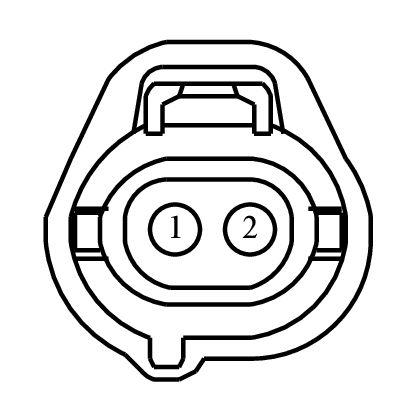

Connector End View (C1110) - AIR CONDITIONING (A/C) COMPRESSOR CONTROL SOLENOID
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1110 | AIR CONDITIONING (A/C) COMPRESSOR CONTROL SOLENOID | 14A280 | #N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| F5OB-14474-AA | Not Available | |
| XR8T-14474-DA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBB12 (GN-WH) | 18 | FUSE - 12 OR CIRCUIT BREAKER | Lincoln 2.7L/3.0L | F5OB-14474-AA | |||
| 1 | CBK03 (GY) | 18 | FUSE - 3 OR CIRCUIT BREAKER (VPWR 3) | F5OB-14474-AA | ||||
| 2 | VE462 (WH-BN) | 20 | CTRL MOD. - POWERTRAIN # VARIABLE A/C COMPRESSOR VALVE | XR8T-14474-DA | ||||

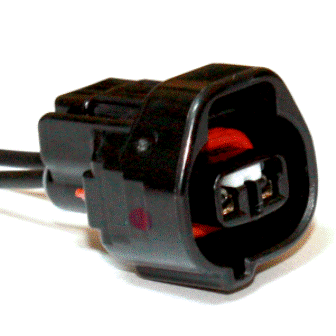

Available Pigtail Kits
Pigtail Kit Part Number WPT-869
Service Part Number:
6U2Z-14S411-DA
Gauge:
18
Pin material:
Tin
Cavities:
2
Vehicle Uses:
- Lamp - License
