Connector End View (C1100A) - BATTERY

Connector: Description Color Harness Base Part # Service Pigtail
C1100A BATTERY 14A280 #N/A Not Available

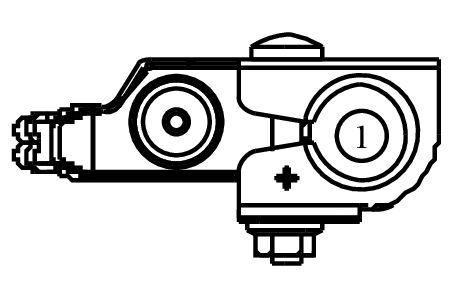

GFDWR88840Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 SDC02 (RD) 4 BATTERY - # PLUS NA
