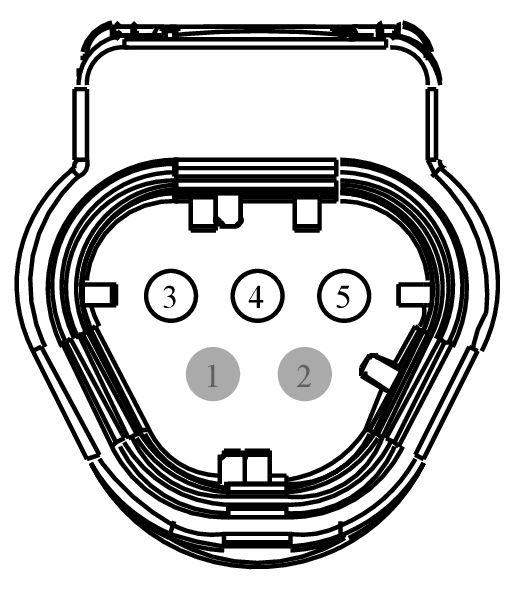

Connector End View (C1073B) - FUEL RAIL PRESSURE (FRP) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1073B	FUEL RAIL PRESSURE (FRP) SENSOR	BK	14B485	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	RE454 (YE-GN)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2	2.0L	N/A
4	LE238 (GY)	20	CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE SENSOR +	2.0L	N/A
5	LE423 (GN-VT)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1)	2.0L	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1418

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-HA

Gauge:

18

Pin material:

Silver

Cavities:

5

Vehicle Uses:

• Sensor - Fuel Rail Pressure
• Sensor - Turbo Intake Pressure/Temperature
